A single electrostatic discharge can destroy a $10,000 circuit board in milliseconds. Our ESD epoxy systems dissipate static safely to ground — keeping your equipment, people, and processes protected.
Standard epoxy and tile floors allow static charges to build up — a person walking across a room can accumulate 35,000 volts. In electronics manufacturing, semiconductor handling, or pharmaceutical environments, that charge can destroy components, trigger false alarms, or ignite flammable materials.
ESD (Electrostatic Dissipative) flooring contains conductive materials that redirect static charge harmlessly to ground. Our systems meet ANSI/ESD S20.20 standards and are third-party verified.
PCB assembly, semiconductor fab, component testing

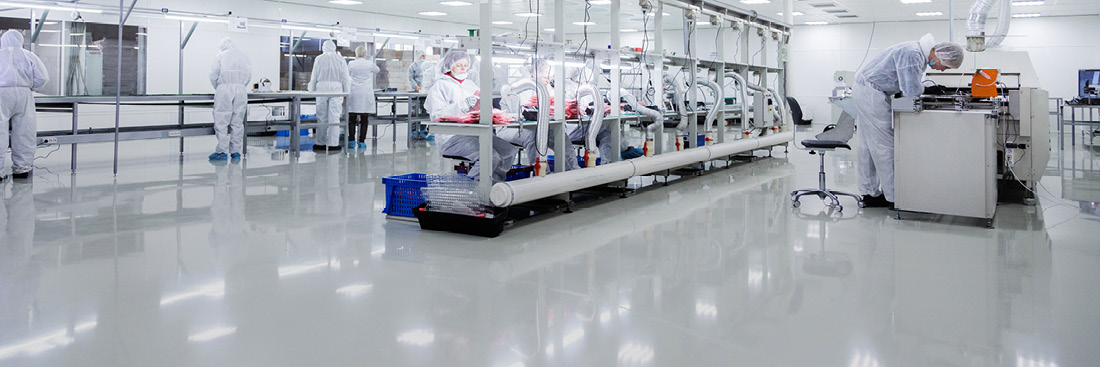

Clean room environments, controlled static areas
Anywhere flammable vapours or explosive dust are present
Protect rack-mounted equipment from static damage
| Specification | Value |
|---|---|
| Resistance range | 1 × 106 – 1 × 109 Ω (dissipative) |
| Standard compliance | ANSI/ESD S20.20, IEC 61340-5-1 |
| Thickness | 2–3 mm |
| Finish | Gloss or satin |
| Colour options | Grey, beige, green, blue, custom |
| Installation time | 2–3 days (curing included) |
| Temperature resistance | -30°C to +80°C |
We'll assess your facility, measure resistance requirements, and propose the compliant system at the best price. Usually quoted within 48 hours.
